- Team Member

Left : Park, Joonil, Middle : Kim, Jinho, Right : Jo, Wonyoung

Park, Joonil was in charge of C&DHS, CS and GS, Kim, Jinho was in charge of Team Leader, ADCS, Payloads and a Parachute, Jo, Wonyoung was in charge of SMS, EPS and Payloads

- CanSat

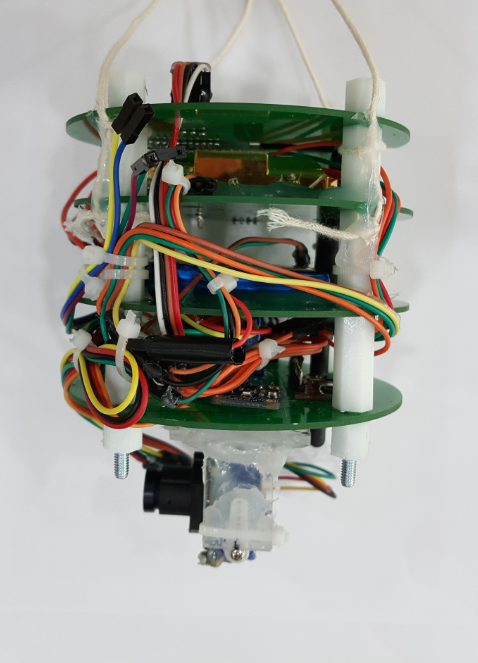

Specification: Diameter 100mm, Height 152mm, Weight 523g(included a parachute)

Our CanSat performed two main missions and one submission

The first main mission is observing toxin and CO2 gas concentration.

The Second main mission is taking pictures for a chemical explosion accident field by using a gimbal control system which is a submission under the second main mission.

PCB boards designed by a SMS manager: Jo, Wonyoung.

- Gimbal Simulation

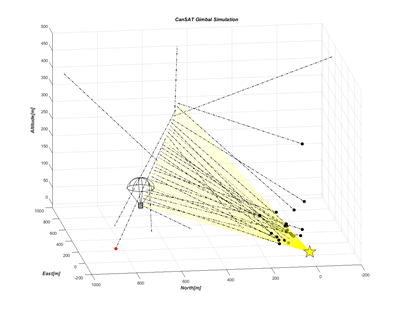

This shows a performance of a gimbal equiped on the CanSat.

Performance : an oriented success percent is expected 82.20%

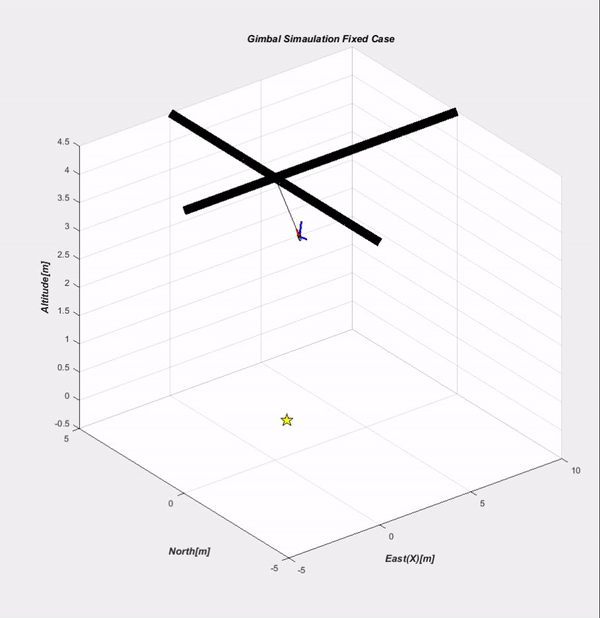

This shows an actuating gimbal by using a 3-1-3 system. Later, I changed a gimbal algorithm from the 3-1-3 system to an Azimuth-Elevation system.

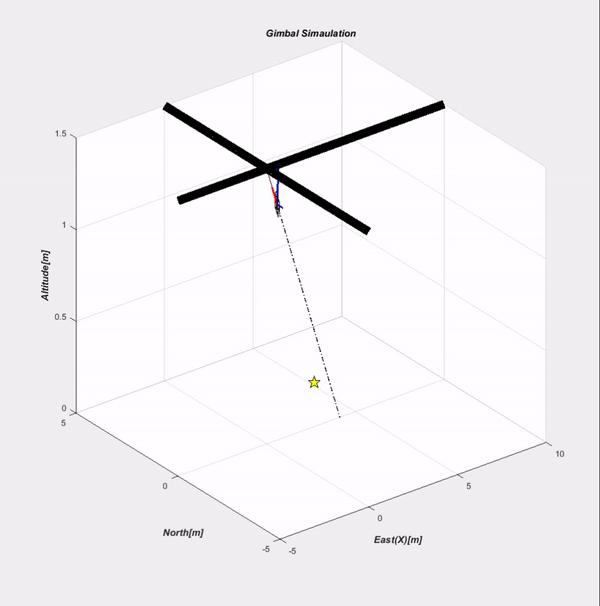

The Azimuth-Elevation System. Black points will be appeard in every 5 seconds.

The gimbal simulation was performed by Kim, Jinho.

- Ground Station

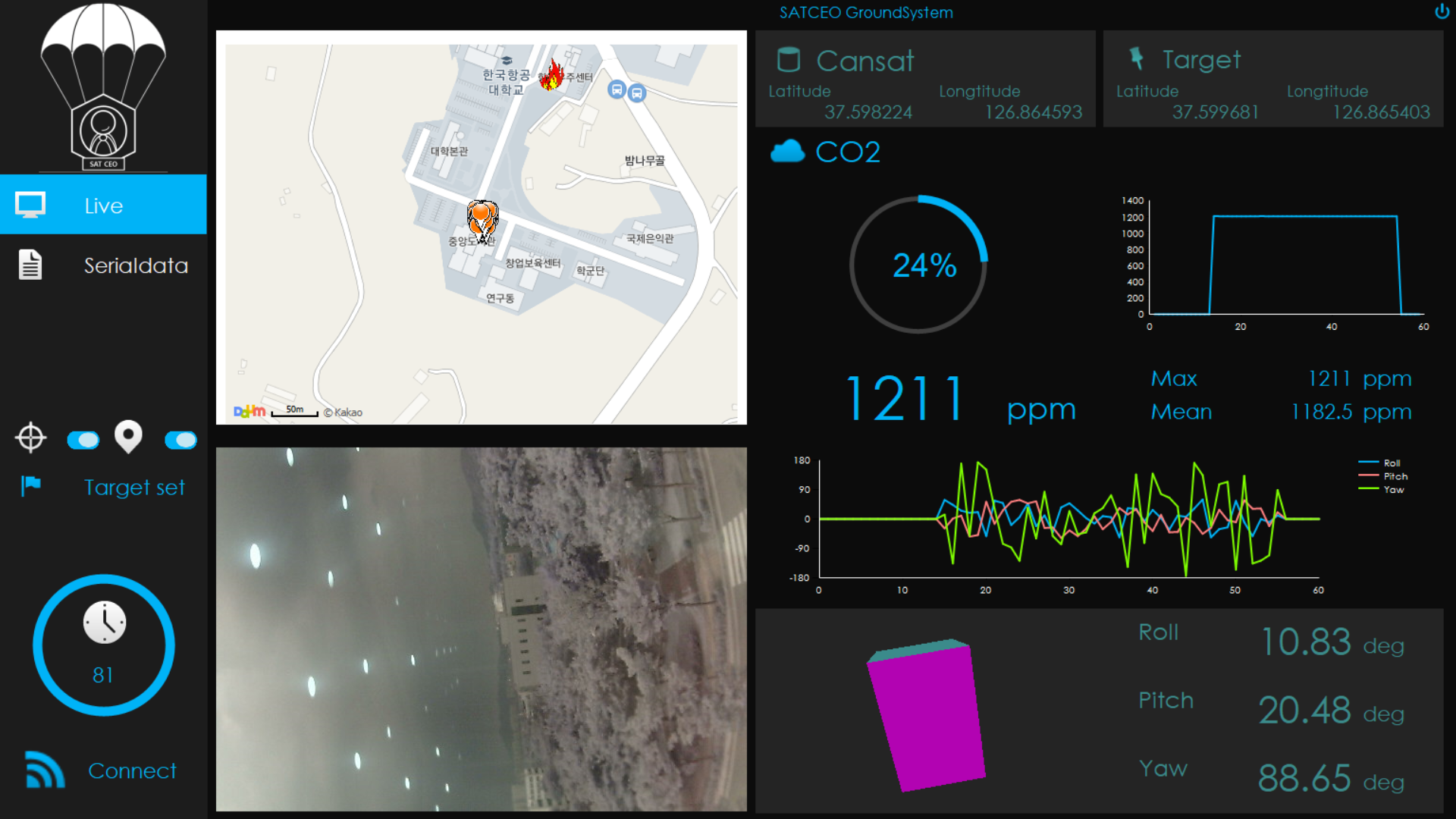

SATCEO GS which was designed by Park, Joonil.

- Parachute

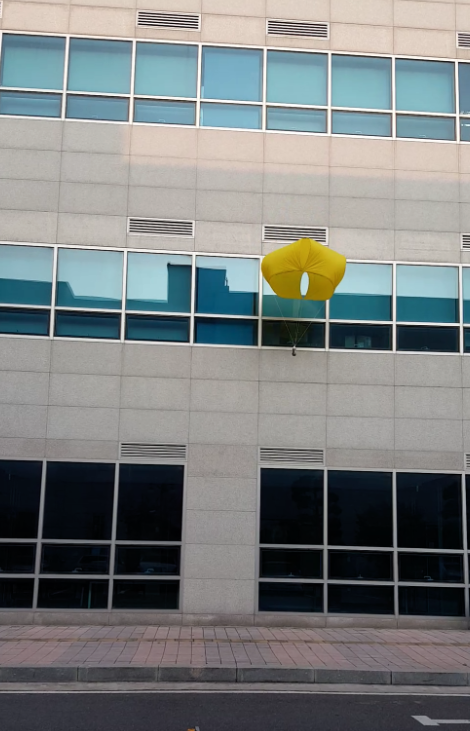

Terminal Velocity : 2.44m/s. This cross parachute was designed by Kim, Jinho.

- After Competition..

After competition. Left two and right one are in AOS team member who also studied together with our team in SSRL(Space System Research Laboratory).

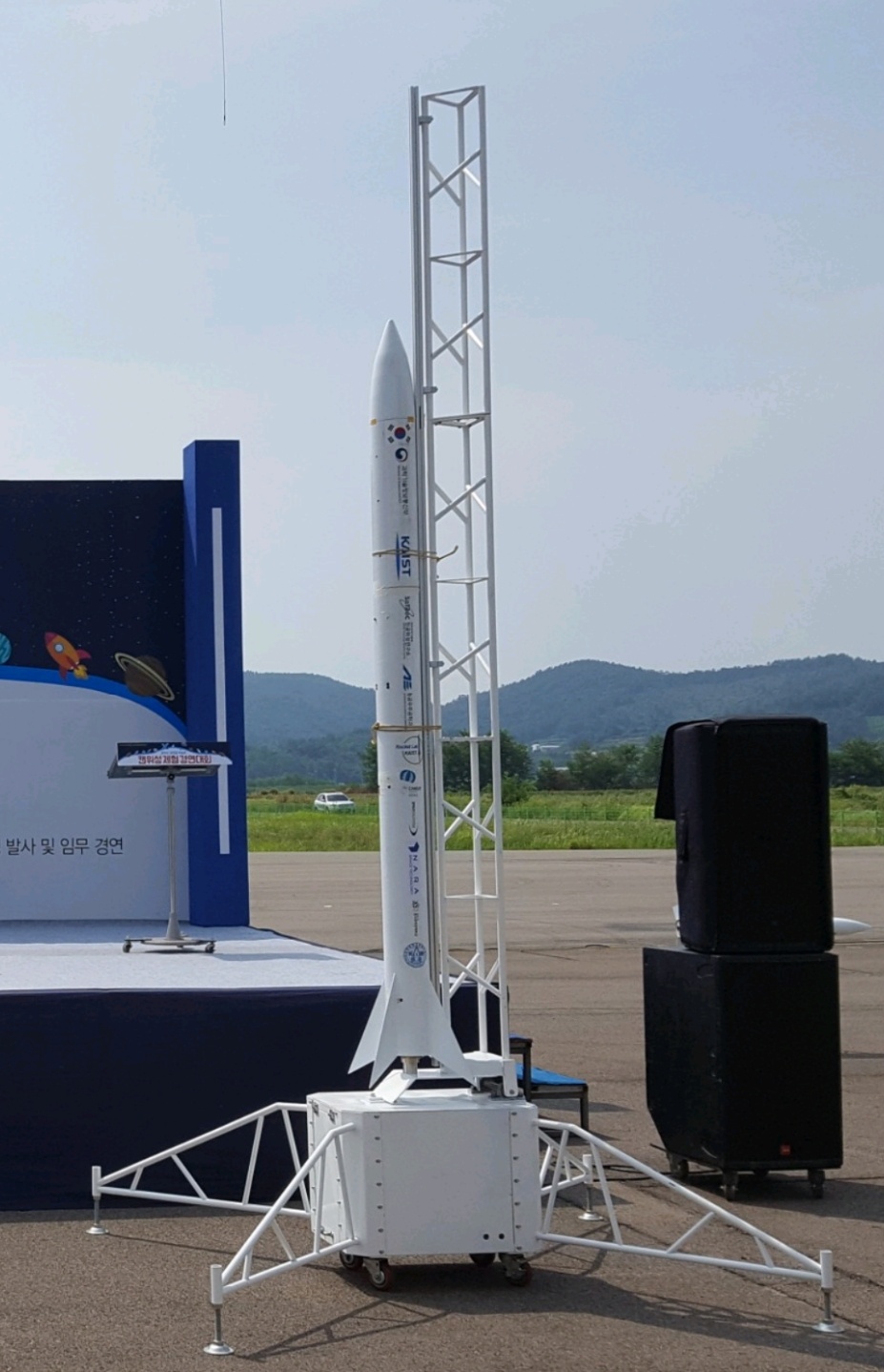

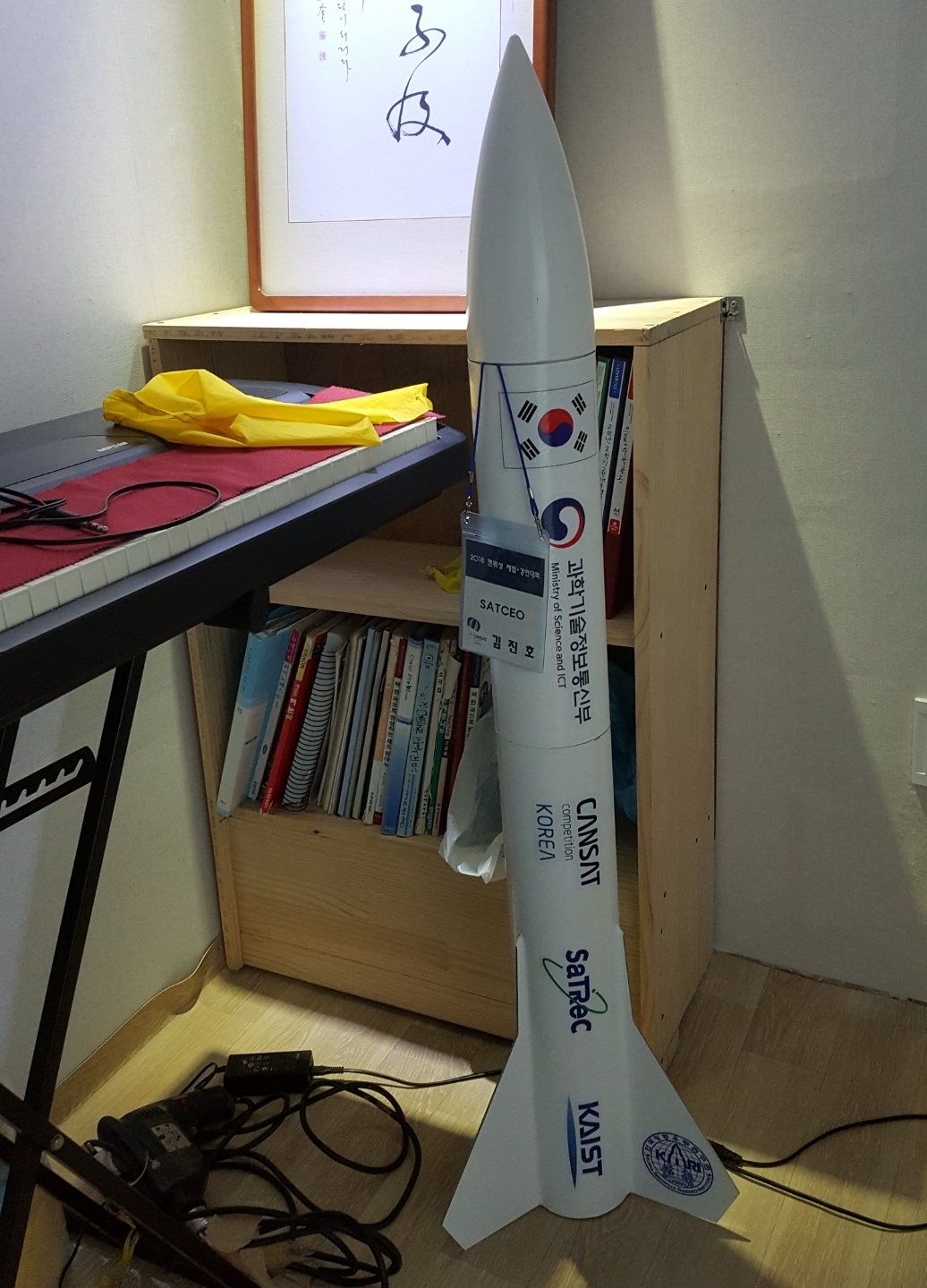

Left : Actuall Flight Rocket of a Creative Department, Right : A Celebrate Reward for a Game
